PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - QS Series Belt Driven Air Compressor
Model: V-0.25/12.5/QS V-0.48/12.5/QS V-0.60/12.5/QS
INFORMATION:
QSSeries Characteristic

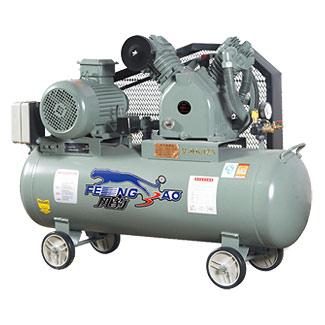

QS series Belt -Driven air compressor adopts improved efficient cooling
cylinder cover and increase air flow. The cooling efficiency is increased by enlarged cooling fin area and using of aluminum alloy materials with high heat conduction efficiency. A V-shaped groove is set between air intake and exhaust section to reduce heat and improve air intake efficiency. I¡ªtype suction valve with good efficiency is used for improving air flow. The overall valve is made of stainless steel which can try to avoid rust.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
V-0.25/12.5/QS 2.2 3 1050 250 8.8 12.5 178 110 28.6 140 125x44x91
V-0.48/12.5/QS 4 5.5 950 480 16.9 12.5 178 110 28.6 146 123x51 x94
V-0.60/12.5/QS 4 5.5 950 600 21.2 12.5 178 90 23.4 102 121x47x84
