PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - ZZ Series Belt Driven Air Compressor

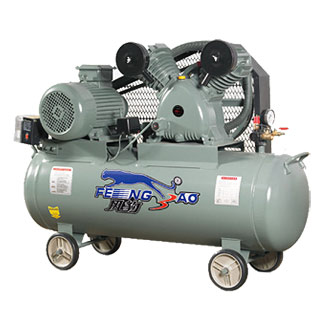

Model: V-0.48/8/ZZ V-0.60/8/ZZ
INFORMATION:
ZZ Series Characteristic
ZZ Series Belt -Driven air compressor adopts advanced technology such as CAD, CAM. Large crankcase ensure that the machine run more reliable. The oil consumption is only 1/4 of the National standards and The noise is 8dB (A) lower than the national standard. The streamlined cylinder’ s cover and cooling fan can lower the temperature quickly and save energy.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
V-0.25/8/ZZ 2.2 3 1050 250 8.8 8 115 110 28.6 140 125x44x91
V-0.48/8/ZZ 4 5.5 950 480 16.9 8 115 110 28.6 146 123x51 x94
V-0.60/8/ZZ 4 5.5 950 600 21.2 8 115 90 23.4 102 121 x 47x84
V-0.25/12.5/ZZ 2.2 3 1050 250 8.8 12.5 178 70 18.5 65 108x44x81
V-0.48/12.5/ZZ 4 5.5 950 480 16.9 12.5 178 110 28.6 140 125x44x91
V-0.60/12.5/ZZ 4 5.5 950 600 21.2 12.5 178 110 28.6 146 123x51 x94
