PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - ZZ Series Belt Driven Air Compressor

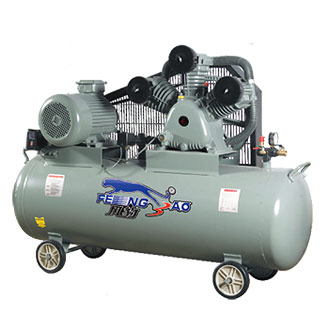

Model: W-0.67/8/ZZ W-0.90/8/ZZ
INFORMATION:
ZZ Series Characteristic
ZZ Series Belt -Driven air compressor adopts advanced technology such as CAD, CAM. Large crankcase ensure that the machine run more reliable. The oil consumption is only 1/4 of the National standards and The noise is 8dB (A) lower than the national standard. The streamlined cylinder’ s cover and cooling fan can lower the temperature quickly and save energy.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
W-0.67/8/ZZ 5.5 7.5 950 670 23.7 8 115 170 44.9 193 143x57x100
W-0.90/8/ZZ 7.5 10 950 900 31.8 8 115 230 60.8 202 150x57x100
W-0.36/12.5/ZZ 3 4 1100 360 12.7 12.5 178 90 23.4 102 121 x 47x84
W-0.67/12.5/ZZ 5.5 7.5 950 670 23.6 12.5 178 120 31.2 177 136x57x94
W-0.90/12.5/ZZ 7.5 10 950 900 31.8 12.5 178 160 41.6 193 150x57x100
