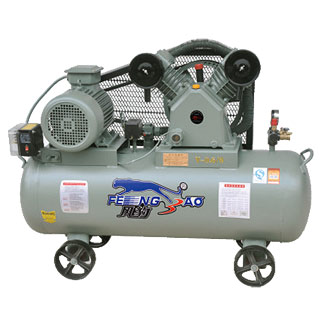

PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - DF Series Belt Driven Air Compressor
Model: V-0.25/8/DF V-0.48/8/DF V-0.60/8/DF
INFORMATION:
DF Series Characteristic
DF series Belt -Driven air compressor adopts single-system valve design. Its
key parts are machined in CNC machining center. The, performance are with low RPM, high compression efficiency and easy maintenance. The crankcase, cylinder with cover are made of excellent cast iron material to make it strong, durable, cost--í»effective.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
V-0.25/8/DF 2.2 3 950 250 8.8 8 115 110 28.6 140 125x44x91
V-0.48/8/DF 4 5.5 850 480 16.9 8 115 110 28.6 146 123x51x94
V-0.60/8/DF 4 5.5 850 600 21.2 8 115 90 23.4 102 121x47x84
