PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - DF Series Belt Driven Air Compressor

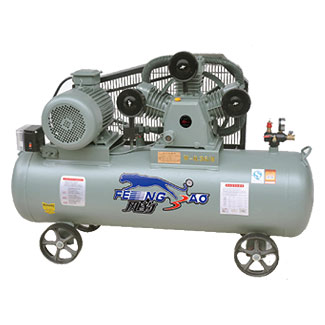

Model: W-0.36/8/DF W-0.67/8/DF W-0.90/8/DF
INFORMATION:
DF Series Characteristic
DF series Belt -Driven air compressor adopts single-system valve design. Its
key parts are machined in CNC machining center. The, performance are with low RPM, high compression efficiency and easy maintenance. The crankcase, cylinder with cover are made of excellent cast iron material to make it strong, durable, cost--í»effective.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
W-0.36/8/DF 3 4 1000 360 12.7 8 115 120 31.2 177 136x57x94
W-0.67/8/DF 5.5 7.5 850 670 23.7 8 115 170 44.9 193 143x57x100
W-0.90/8/DF 7.5 10 850 900 31.8 8 115 230 60.8 202 150x57x100
BACK >>
