Your Position: Home - Products - Oilless Belt Driven Air Compressor - HH Series Oilfree Belt Driven Air Compressor

Model: WW-1.25/7/HH WW-1.25/10/HH WW-1.6/10/HH WW-1.8/10/HH

INFORMATION:

HH Series Characteristic

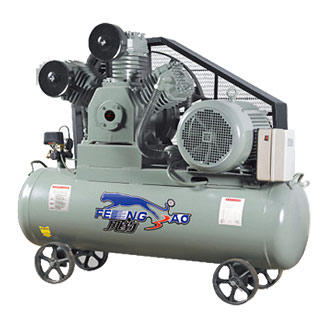

HH series Belt -Driven oil-free air compressor is a reciprocating piston, air-cooled air compressor. It is designed for departments requiring of higher purity air source and clean environment. This product does not need to add lubricants. The exhaust air does not contain oil and oil vapor, don't pollute the environment, gas equipment and its products, making it a kind of environmental protection and energy saving products. It is widely used in medical, pharmaceutical, food and beverage, food processing, post and telecommunications, petrochemical, electronic pneumatic instrumentation, painting, powder and granular gas transport, air agitation, film, construction, materials, defense-related research, diving, breathing and other departments with the need of high quality oil-free compressed air.

Model Numbers	Power		Speed	Air Displacement		Max Pressure		Tank		N.W	Dimensions
Product Performance

	KW	HP	R.P.M	L/min	C.F.M	Bar	Psi	L	Gal	KG	LxWxH(cm)
WW-1.25/7/HH	11	15	860	1250	44.1	7	100	280	61.6	297.5	160x65x120
WW-1.25/10/HH	11	15	770	1250	44.1	10	145	280	61.6	297.5	160x65x120
WW-1.6/10/HH	15	18.5	820	1600	56.5	10	145	320	84.5	302.5	166x65x122
WW-1.8/10/HH	15	18.5	900	1800	63.6	10	145	320	84.5	381	166x65x122
WW-1.2/10/HH	5.5x2	15	740	1200	42.4	10	145	300	79.3	296	185x125x140

Model Numbers	Power		Speed	Air Displacement		Max Pressure		Tank		N.W	Dimensions
Product Performance

	KW	HP	R.P.M	L/min	C.F.M	Bar	Psi	L	Gal	KG	LxWxH (cm)
WW-1.8/7/HH	7.5x2	18.5	810	1800	63.6	7	100	300	79.3	316	185x125x140
WW-1.85/10/HH	7.5x2	18.5	810	1850	65.3	10	145	300	79.3	316	185x125x140
WW-1.4/12.5/HH	7.5x2	18.5	740	1400	49.4	12.5	180	300	79.3	320	185x125x140
WW-2.5/7/HH	11 x2	30	770	2500	88.3	7	100	300	79.3	387	185x125x140
WW-2.5/10/HH	11 x2	30	770	2500	88.3	10	145	300	79.3	387	185x125x140
WW-3.0/7/HH	11 x2	30	810	3000	106	7	100	320	84.5	396	185x125x140
WW-3.0/10/HH	11 x2	30	820	3000	106	10	145	320	84.5	396	185x125x140
WW-3.2/7/HH	15x2	40	820	3200	113	7	100	320	84.5	475	190x150x150
WW-3.2/10/HH	15x2	40	900	3200	113	10	145	320	84.5	475	190x150x150
WW-3.6/7/HH	15x2	40	900	3600	127	7	100	320	84.5	475	190x150x150
WW-3.6/10/HH	15x2	40	900	3600	127	10	145	320	84.5	475	190x150x150
