PRODUCTS Your Position: Home - Products - Screw Air Compressor

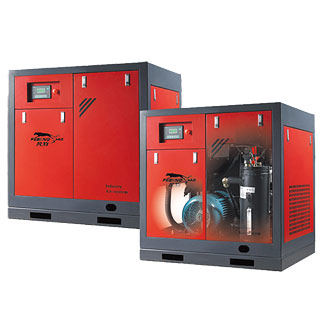

Model: Screw Air Compressor
INFORMATION:


Product Performance

Model Numbers

Power Air Displacement Max Pressure N.W Dimensions
  KW/HP m3/min Mpa Kg LxWxH(mm)
FBS1007 7.5/10 1.2 0.7 530 1000x600x700
FBS1010 7.5/10 1.1 1.0 530 1000x600x700
FBS1013 7.5/10 0.8 1.3 530 1000x600x700
FBS1507 11/15 1.6 0.7 565 1000x700x800
FBS1510 11/15 1.4 1.0 565 1000x700x800
FBS1513 11/15 1.2 1.3 565 1000x700x800
FBS2007 15/20 2.0 0.7 605 1000x700x800
FBS2010 15/20 1.8 1.0 605 1000x700x800
FBS2013 15/20 1.5 1.3 605 1000x700x800
FBS2007B 15/20 2.5 0.7 605 1120x800x1150
FBS2010B 15/20 2.3 1.0 605 1120x800x1150
FBS2013B 15/20 1.8 1.3 605 1120x800x1150
FBS2507 18.5/25 3.1 0.7 625 1120x800x1150
FBS2510 18.5/25 2.7 1.0 625 1120x800x1150
FBS2513 18.5/25 2.3 1.3 625 1120x800x1150
FBS3007 22/30 4.0 0.7 645 1120x800x1150
FBS3010 22/30 3.5 1.0 645 1120x800x1150
FBS3013 22/30 2.8 1.3 645 1120x800x1150

Product Performance

Model Numbers

Power Air Displacement Max Pressure N.W Dimensions

  KW/HP m3/min Mpa Kg LxWxH(mm)
FBS4007 30/40 5.2 0.7 895 1350x1000x1320
FBS4010 30/40 4.5 10 895 1350x1000x1320
FBS4013 30/40 3.8 1.3 895 1350x1000x1320
FBS5007 37/50 6.3 0.7 1050 1350x1000x1320
FBS5010 37/50 5.4 1.0 1050 1350x1000x1320
FBS5013 37/50 4.6 1.3 1050 1350x1000x1320
FBS6007 45/60 7.5 0.7 1150 1350x1000x1320
FBS6010 45/60 6.6 1.0 1150 1350x1000x1320
FBS6013 45/60 5.7 1.3 1150 1350x1000x1320
FBS7007 52/70 8.5 0.7 1450 1630x1220x1620
FBS7010 52/70 6.6 1.0 1450 1630x1220x1620
FBS7013 52/70 5.7 1.3 1450 1630x1220x1620
FBS7507 55/75 10 0.7 1560 1630x1220x1620
FBS7510 55/75 9.5 1.0 1560 1630x1220x1620
FBS7513 55/75 8.4 1.3 1560 1630x1220x1620
FBS10007 75/100 15 0.7 1950 1630x1220x1620
FBS10010 75/100 12.5 1.0 1950 1630x1220x1620
FBS10013 75/100 10 1.3 1950 1630x1220x1620
FBS15007 110/150 20 0.7 225 2750x1460x1800
FBS15010 110/150 17 1.0 225 2750x1460x1800
FBS15013 110/150 13 1.3 225 2750x1460x1800
