PRODUCTS Your Position: Home - Products - Vehicle Air Compressor
Model: ModelX-1100 / ModelX-1500
INFORMATION:

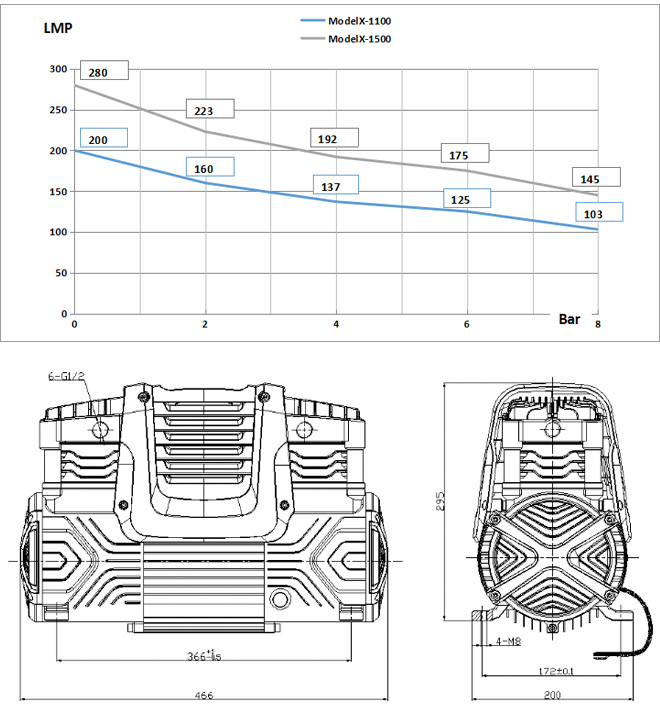

Model Electrical Source Power Speed Air Displacement Max Pressure N.W Dimensions Noises
KW HP RPM LPM/Bar(CFM/Bar) Continuous work Intermittent work Kg LXWXH(cm) Noise
dB(A)
0 2 4 6 8 Bar PSI Bar PSI
ModelX-1100
50Hz 1.1 1.5 1400 2007.1 1605.7 1374.8 1254.4 1033.6 8 115 10 145 25 37*17*30 74
60Hz 1.1 1.5 1680 2007.1 160(5.7) 137(4.8) 125(4.4) 103(3.6) 8 115 10 145 25 37*17*30 74
ModelX-1500
50Hz 1.5 2 1400 2809.9 223(7.9) 192(6.8) 175(6.2) 145(5.1) 8 115 10 145 25 47*20*30 75
60Hz 1.5 2 1680 2809.9 223(7.9) 192(6.8) 175(6.2) 145(5.1) 8 115 10 145 25 47*20*30 75
