Model: ModelX-3000H / ModelX-3000
INFORMATION:

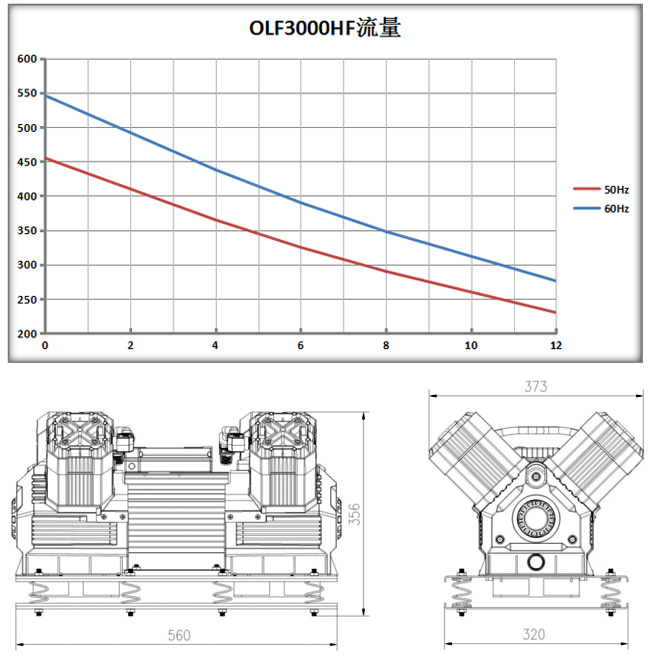

Model Electrical Source Power Speed Air Displacement Max Pressure N.W Dimensions Noises
KW HP RPM LPM/Bar(CFM/Bar) Continuous work Intermittent work Kg LXWXH(cm) Noise
dB(A)
0 2 4 6 8 10 12 Bar PSI Bar PSI
ModelX-3000H 50Hz 3 4 1400 455(16) 405(14.3) 370(13) 330(11.6) 300(10.6) 265(9.3) 230(8.1) 8 115 12.5 180 45 56*38*36 75
60Hz 3.5 4.5 1680 545(19.2) 490(17.3) 440(15.5) 390(13.8) 360(12.7) 320(11.3) 275(9.7) 8 115 12.5 180 45 56*38*36 78
ModelX-3000 50Hz 3 4 1400 455(16) 405(14.3) 370(13) 330(11.6) 300(10.6) 265(9.3) 230(8.1) 8 115 10 145 45 56*38*36 75
60Hz 3.5 4.5 1680 545(19.2) 490(17.3) 440(15.5) 390(13.8) 360(12.7) 320(11.3) 275(9.7) 8 115 10 145 45 56*38*36 78
