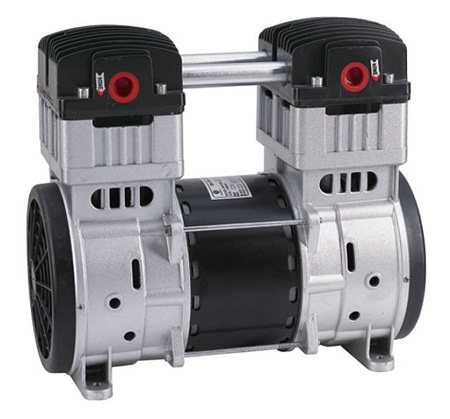

PRODUCTS Your Position: Home - Products - Oilless Rocking Piston Air Compressor Pump
Model: OLF1100D OLF1500D
INFORMATION:

Pressure

Electrical
Source		 Model
Numbers
 Compressor
Performance
(LPM@BAR)
 Maximum
Pressure
(BAR)
 Ambient Air
Temp 		Power
(WATTS)		 Speed
(RPM)		 Thermal
Protector		 Net
Weight
  0 2.0 4.0 6.0 8.0 Cintin-
Uous		 Intermi-
Ttent		 Rest-
Art		 MIN.
(¡æ)		 MAX
(¡æ)
  (KG)
AC.50Hz OLF1100D 200 160 137 125 103 8.0 9.0 1.0 -5 40 1100 1380 YES 17.0
AC.60Hz OLF1100D 200 160 137 125 103 8.0 9.0 1.0 -5 40 1100 1680 YES 17.0
AC.50Hz OLF1500D 280 223 192 175 145 8.0 9.0 1.0 -5 40 1350 1380 YES 17.5
AC.60Hz OLF1500D 280 223 192 175 145 8.0 9.0 1.0 -5 40 1350 1650 YES 17.5

TWO-GRADE Vacuum

Electrical
Source		 Model
Numbers		 Vacuum
Performance
(LPM@BAR)		 Vacuum
(MBAR)		 Ambient Air
Temp 		Power
(WATTS)		 Speed
(RPM)		 Thermal
Protector		 Net
Weight
  0 -200 -400 -600 -800 MAX-
IMUM		 REST-
ART		 MIN.
(¡æ)		 MAX
(¡æ)
  (KG)
AC.50Hz OLF1100D 100.0 55.0 30.0 16.6 9.5 -980 0 -5 40 600 1450 YES 17.0
AC.60Hz OLF1100D 100.0 55.0 30.0 16.6 9.5 -980 0 -5 40 600 1750 YES 17.0
AC.50Hz OLF1500D 140.0 77.0 42.3 23.3 12.8 -980 0 -5 40 750 1450 YES 17.5
AC.60Hz OLF1500D 140.0 77.0 42.3 23.3 12.8 -980 0 -5 40 750 1720 YES 17.5
