PRODUCTS Your Position: Home - Products - Oilless Rocking Piston Air Compressor Pump

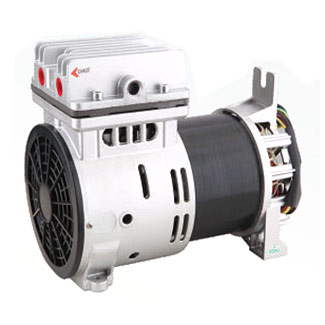

Model: OLF550S-120
INFORMATION:

Pressure

Electrical
Source		 Model
Numbers
 Compressor
Performance
(LPM@BAR)
 Maximum
Pressure
(BAR)
 Ambient Air
Temp 		Power
(WATTS)		 Speed
(RPM)		 Thermal
Protector		 Net
Weight
  0 2.0 4.0 6.0 8.0 Cintin-
Uous		 Intermi-
Ttent		 Rest-
Art		 MIN.
(℃)		 MAX
(℃)
  (KG)
交流AC.50Hz OLF550S-120 51.7 35 28.3 23.3 18.3 7.0 8.0 1.0 -5 40 450 1400 YES 7.0
交流AC.60Hz OLF550S-120 63 42.5 34.5 28 22.5 7.0 8.0 1.0 -5 40 500 1680 YES 7.0

TWO-GRADE Vacuum

Electrical
Source		 Model
Numbers		 Vacuum
Performance
(LPM@BAR)		 Vacuum
(MBAR)		 Ambient Air
Temp 		Power
(WATTS)		 Speed
(RPM)		 Thermal
Protector		 Net
Weight
  0 -200 -400 -600 -800 MAX-
IMUM		 REST-
ART		 MIN.
(℃)		 MAX
(℃)
  (KG)
AC.50Hz OLF1100D 100.0 55.0 30.0 16.6 9.5 -980 0 -5 40 600 1450 YES 17.0
AC.60Hz OLF1100D 100.0 55.0 30.0 16.6 9.5 -980 0 -5 40 600 1750 YES 17.0
AC.50Hz OLF1500D 140.0 77.0 42.3 23.3 12.8 -980 0 -5 40 750 1450 YES 17.5
AC.60Hz OLF1500D 140.0 77.0 42.3 23.3 12.8 -980 0 -5 40 750 1720 YES 17.5
