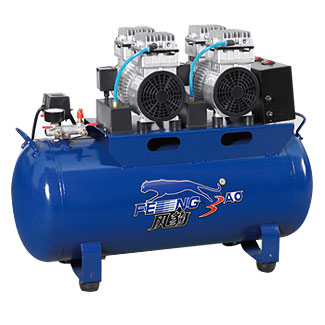

PRODUCTS Your Position: Home - Products - Oil Free Portable Air Compressor - QS Series Oil Free Portable Air Compressor
Model: FB750D0-20A55 (FB-176/7) FB1100D0-20A100 (FB-280/7) FB1500D0-20A100
INFORMATION:
QS Series Characteristic
QS Series Oil-free Air Compressor can provide stable&oil-free air source, to
avoid oil going into human body. It can also avoid the terminal machine's failure caused by oil in the non-oil pipe. With high quality components, it is manufactured and inspected according to medical IS013485: 2003 standards. It features of huge flow, low noise, clean and dry air source, smooth running, and automatic control. During operation, when the tank inner pressure reaches the set minimum or maximum value, the compressor will automatically start or stop. This machine is particularly suitable as dental treatment air source, and is an ideal choice for small dental hospital or private dental clinics. It can also be widely used in food packaging, health, science experiments, respirators and other fields.

Product Performance

Model Numbers Power

Speed

Air Displacement

Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
FB750DO-20A55 1.6 2.2 1380 136 4.8 7 100 55 14.5 53 70.5x35x63
FB1100DO-20A100 2.4 3.2 1380 250 8.83 8 116 100 26.4 66 90x45x78
FB1500DO-20A100 3.0 4 1380 350 12.36 8 116 100 26.4 68 90x45x78
Remarks: silent cabinet type, multi-heads combination, various tank sizes and other special requirements can be customized. Welcome to call us for discussion.
