PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - HM Series Belt Driven Air Compressor
Model: W-0.67/8/HM W-0.90/8/HM
INFORMATION:

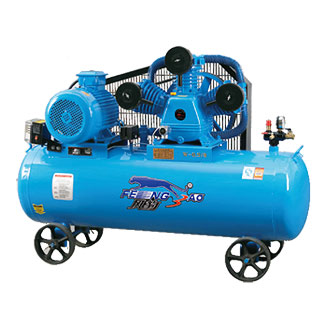

HM Series Characteristic
HM series one-stage V-belt air compressor adopts a durable structure design, with graceful crankcase. Its key parts are machined in CNC machining center, single-system valve design provides high compression efficiency and easy maintenance. The fine cast iron materials ensure super abrasion performance. Its multi-blade cooling fan is the best cooling system.
Suitable for factories, automatical control system, vehicle maintenance, painting, etc with the need of compressed air.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
W-0.67/8/HM 5.5 7.5 950 670 23.7 8 115 120 31.2 177 136x57x94
W-0.90/8/HM 7.5 10 950 900 31.8 8 115 170 44.9 193 143x57x100
