PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - HM Series Belt Driven Air Compressor
Model: W-1.0/8/HM W-1.6/8/HM W-2.0/8/HM
INFORMATION:

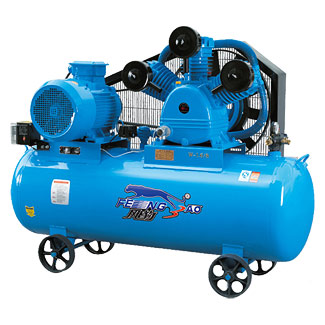

HM Series Characteristic
HM series one-stage V-belt air compressor adopts a durable structure design, with graceful crankcase. Its key parts are machined in CNC machining center, single-system valve design provides high compression efficiency and easy maintenance. The fine cast iron materials ensure super abrasion performance. Its multi-blade cooling fan is the best cooling system.
Suitable for factories, automatical control system, vehicle maintenance, painting, etc with the need of compressed air.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
W-1.0/8/HM 7.5 10 900 900 31.8 8 115 235 61.1 215 163x60x111
W-1.6/8/HM 11 15 800 1600 56.5 8 115 320 83.2 305 180x71 x122
W-2.0/8/HM 15 20 800 2000 70.6 8 115 420 109.2 410 197x77x145
