Your Position: Home - Products - Belt Driven Air Compressor - HM Series Belt Driven Air Compressor

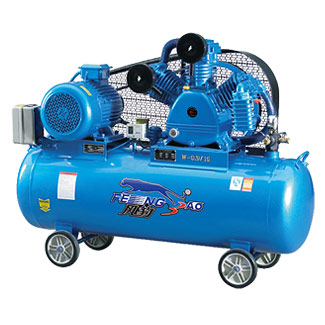

Model: W-0.36/12.5/HM W-0.67/12.5/HM W-0.90/12.5/HM

INFORMATION:

HM Series Characteristic
HM series one-stage V-belt air compressor adopts a durable structure design, with graceful crankcase. Its key parts are machined in CNC machining center, single-system valve design provides high compression efficiency and easy maintenance. The fine cast iron materials ensure super abrasion performance. Its multi-blade cooling fan is the best cooling system.
Suitable for factories, automatical control system, vehicle maintenance, painting, etc with the need of compressed air.

Model Numbers	Power		Speed	Air Displacement		Max Pressure		Tank		N.W	Dimensions
Product Performance

	KW	HP	R.P.M	L/min	C.F.M	Bar	Psi	L	Gal	KG	LxWxH(cm)
V-0.25/12.5/HM	2.2	3.0	1050	250	8.8	12.5	178	70	18.5	65	108x44x81
V-0.48/12.5/HM	4.0	5.5	950	480	16.9	12.5	178	110	28.6	140	125x44x91
V-0.60/12.5/HM	4.0	5.5	950	600	21.2	12.5	178	110	28.6	146	123x51x94
W-0.36/12.5/HM	3.0	4.0	1100	360	12.7	12.5	178	90	23.4	102	121x47x84
W-0.67/12.5/HM	5.5	7.5	950	670	23.6	12.5	178	120	31.2	177	136x57x94
W-0.90/12.5/HM	7.5	10	950	900	31.8	12.5	178	160	41.6	193	143x57x94
