PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - HM Series Belt Driven Air Compressor
Model: Z-0.53/12.5/HM V-1.05/12.5/HM V-3.0/10/HM
INFORMATION:

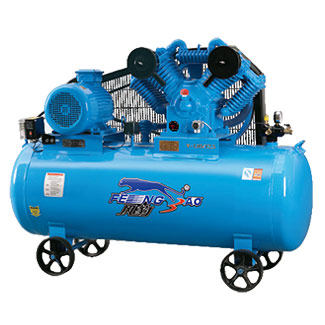

HM Series Characteristic
HM series one-stage V-belt air compressor adopts a durable structure design, with graceful crankcase. Its key parts are machined in CNC machining center, single-system valve design provides high compression efficiency and easy maintenance. The fine cast iron materials ensure super abrasion performance. Its multi-blade cooling fan is the best cooling system.
Suitable for factories, automatical control system, vehicle maintenance, painting, etc with the need of compressed air.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions

  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
Z-0.53/12.5/HM 5.5 7.5 860 530 18.7 12.5 178 120 31.2 201 136x58x104
V-1.05/12.5/HM 7.5 10 860 1050 37.1 12.5 178 320 83.2 325 180x71x122
V-3.0/10/HM 22 30 820 3000 105.9 10 143 300 80 612 188x83x155
