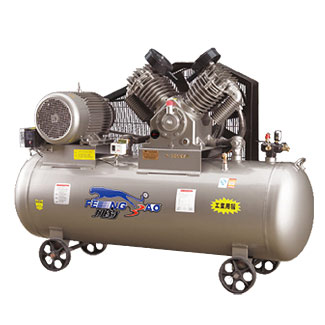

PRODUCTS Your Position: Home - Products - Belt Driven Air Compressor - ZG Series Belt Driven Air Compressor
Model: NV-1.5/8/ZG NV-2.0/8/ZG
ZG Series Characteristic
ZG Series V-belt air compressor is our product of independent inte`ectual
property rights. Its oil shortage alarm system can effectively prevent machine from damaging due to oilless in crankcase. It is safe and reliable. Its new type single-system valve group design and the Japanese high-performance stainless steel material bring high compression efficiency and easy maintenance. The excellent cast iron materials are under multiple-procedure precision machining, ensuring re`able quality and long life. It is suitable for factories, automatical control system, vehicle maintenance, painting, engineering,etc with the need of compressed air.

Product Performance

Model Numbers Power Speed Air Displacement Max Pressure Tank N.W Dimensions
  KW HP R.P.M L/min C.F.M Bar Psi L Gal KG LxWxH(cm)
NV-1.5/8/ZG 15 20 900 1500 52.9 8 115 400 105.7 460 188x67x138
NV-2.0/8/ZG 15 20 900 2000 70.9 8 115 400 105.7 480 188x67x138
